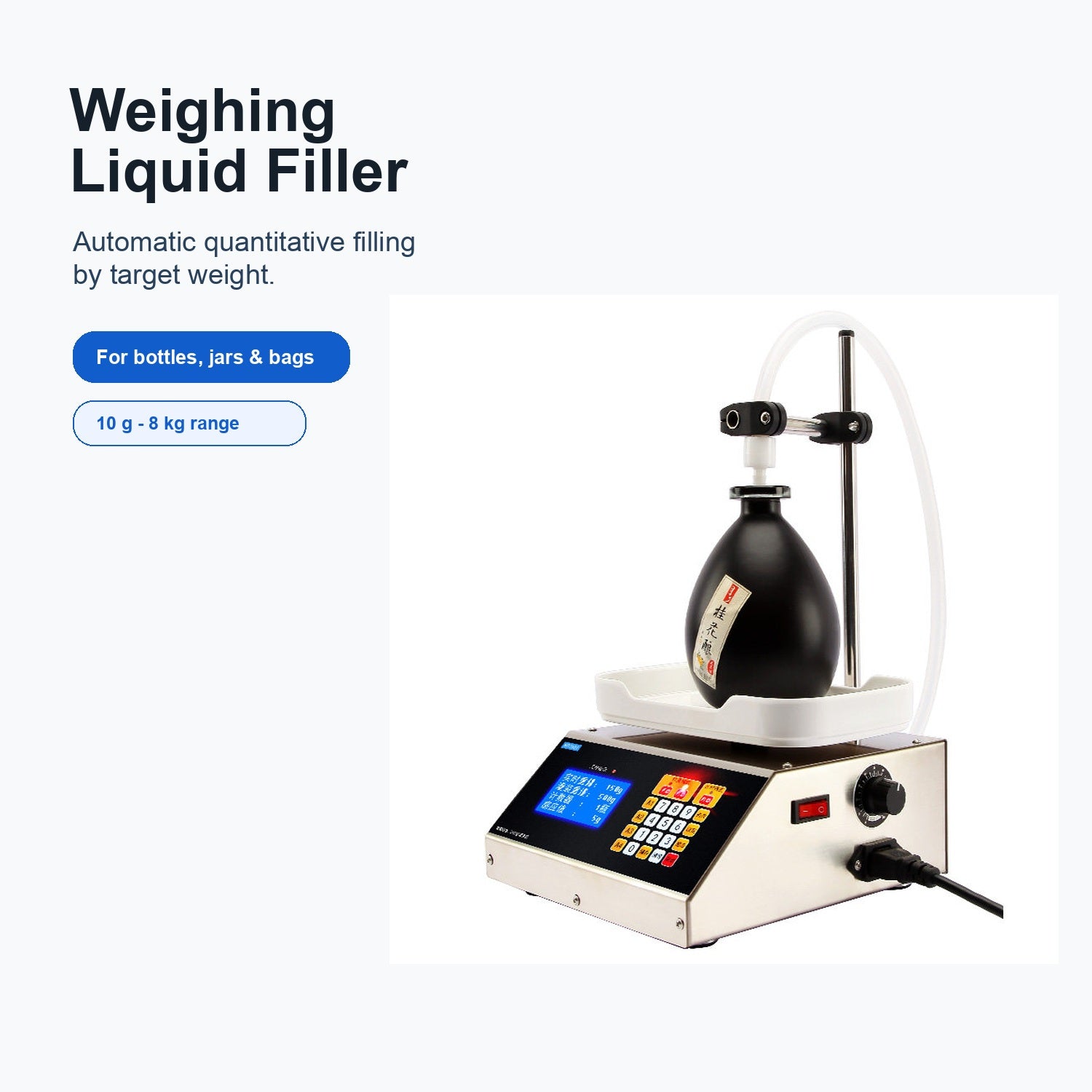

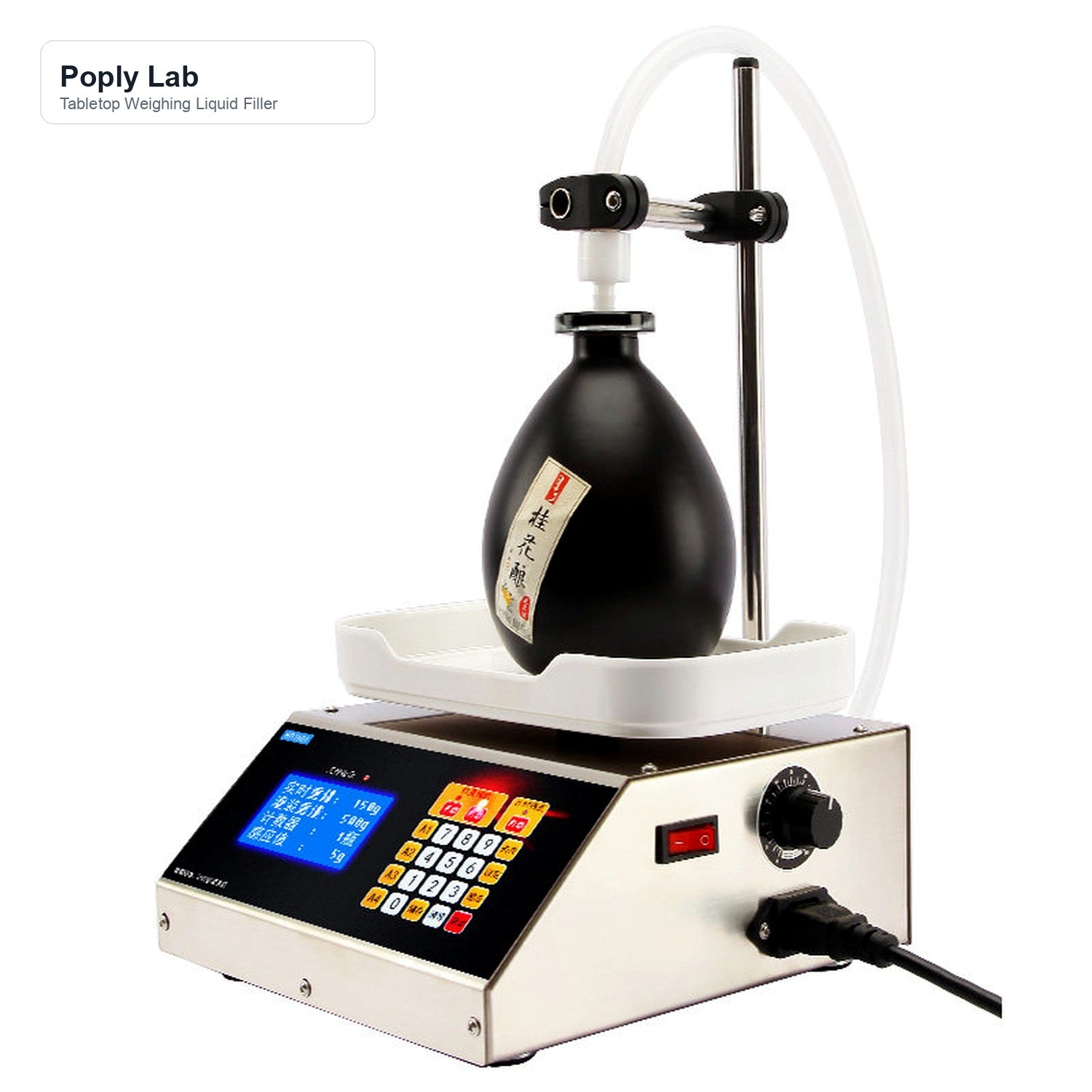

Tabletop Weighing Liquid Filling Machine for Wine, Oil & Beverages

The Tabletop Weighing Liquid Filling Machine is designed for small-batch liquid filling by weight. Instead of filling by time only, the machine uses a built-in weighing platform to measure the target filling weight and stop automatically once the set weight is reached.

It is a practical tabletop solution for small food, beverage, wine, oil, and liquid product brands that need cleaner and more repeatable filling than manual pouring.

Best For

• Wine and spirits
• Beverages and fruit juice
• Water and mineral water
• Soy milk and low-viscosity drinks
• Cooking oil and edible oil
• Soy sauce, vinegar, and similar liquid seasonings
• Low-viscosity agricultural liquids without particles

Key Features

• Weighing-based quantitative filling
• Automatic stop when the target weight is reached
• Digital control panel with weight, count, and sensor display
• Supports automatic mode and timed filling mode
• Anti-drip outlet design
• Removable soft tubing for easier cleaning and replacement
• Compact tabletop design for small-batch production
• Suitable for bottles, jars, and some bags depending on setup

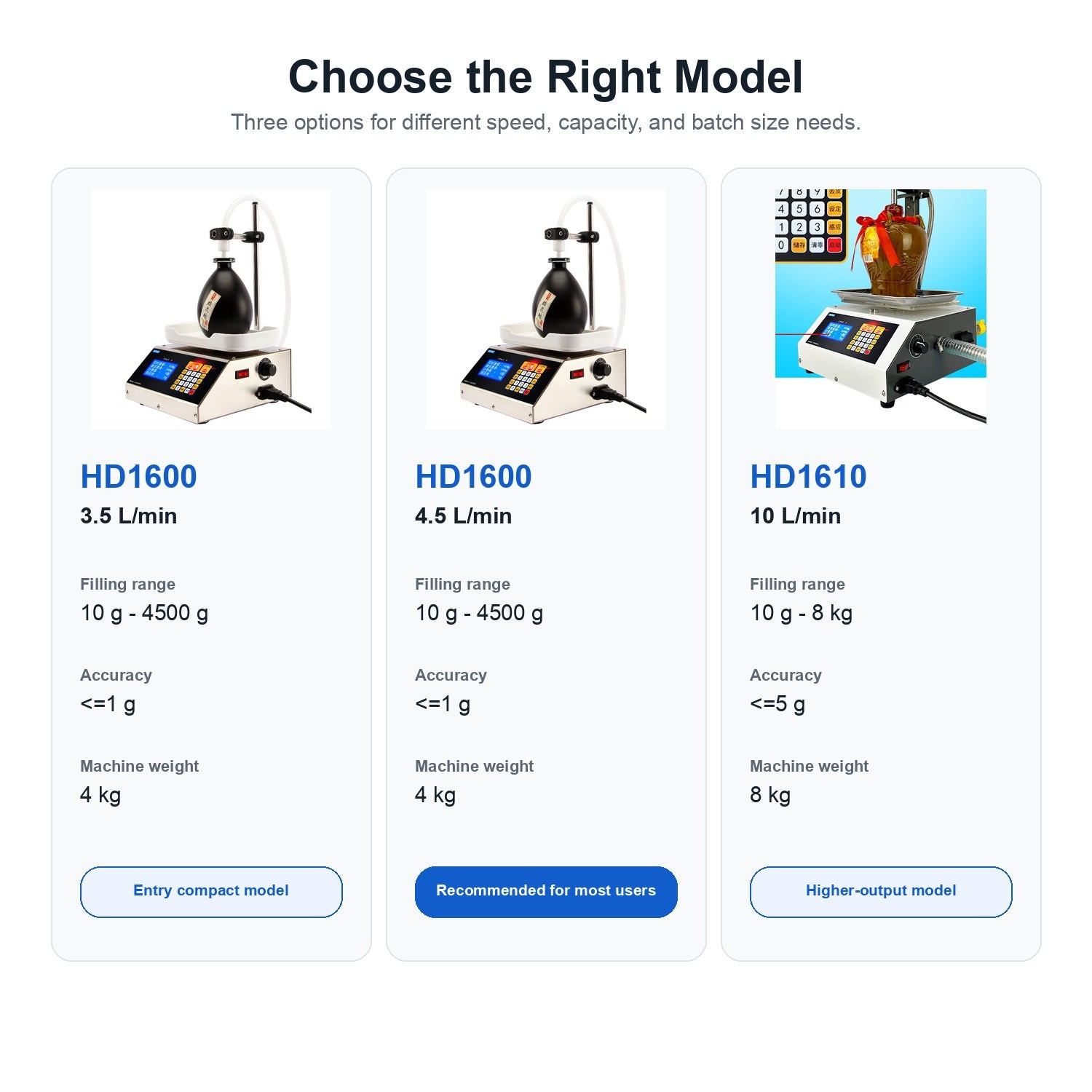

Model Options

Which Model Should You Choose?

• HD1600 - 3.5 L/min: Entry model for smaller bottles and lighter filling work.
• HD1600 - 4.5 L/min: Recommended for most users. It keeps the same compact size while offering faster filling speed.
• HD1610 - 10 L/min: Best for larger bottles, higher output needs, and heavier liquid filling up to 8 kg.

Specifications

• Voltage: AC 110-220V
• HD1600 rated power: 35W / 50W depending on model
• HD1610 rated power: 100W
• HD1600 machine size: 24.5 x 21.5 x 13 cm
• HD1610 machine size: 27 x 27.5 x 17 cm
• HD1600 filling height: 0-35 cm
• HD1610 filling height: 0-40 cm
• HD1600 suction distance: 2 m
• HD1610 suction distance: 3 m

Not Recommended For

• Thick paste, honey, jam, or high-viscosity sauces
• Liquids with pulp, particles, or sediment
• Corrosive liquids unless confirmed before purchase
• Carbonated liquids or foaming liquids without testing

Before You Order

This machine is designed for low-viscosity liquids without particles. If you are not sure whether it works with your product, email us your liquid type, target fill weight, bottle size, and a product photo. We will help you check compatibility before ordering.

Power plug options are available for US, EU, UK, AU, and other regional standards. Contact us before ordering if you need a specific plug type.
