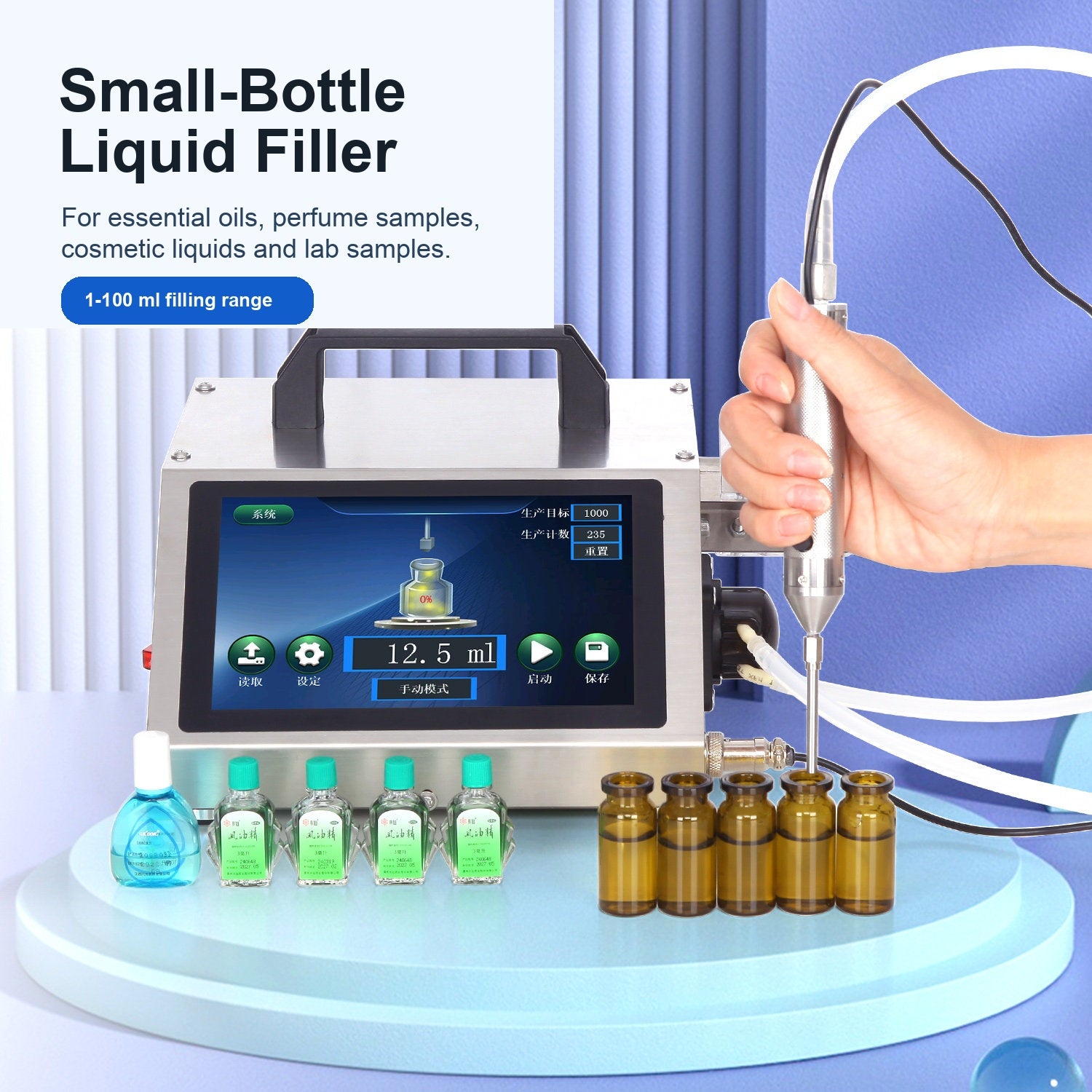

Handheld Small-Bottle Liquid Filling Machine for Essential Oil & Perfume

The Handheld Small-Bottle Liquid Filling Machine is designed for precise filling of small bottles with narrow openings. It is a compact tabletop solution for essential oils, perfume samples, fragrance oils, oral liquids, cosmetic liquids, lab samples, and other low-viscosity liquids.

This machine is built for small-volume filling from 1 ml to 100 ml, with a handheld filling pen for flexible operation. It is a practical choice for small-batch brands that need cleaner, faster, and more repeatable filling than manual syringes or droppers.

Best For

• Essential oil bottles
• Perfume and fragrance samples
• Small cosmetic bottles
• Oral liquid bottles
• Eye-drop style bottles
• Lab sample bottles
• Low-viscosity liquid filling

Key Features

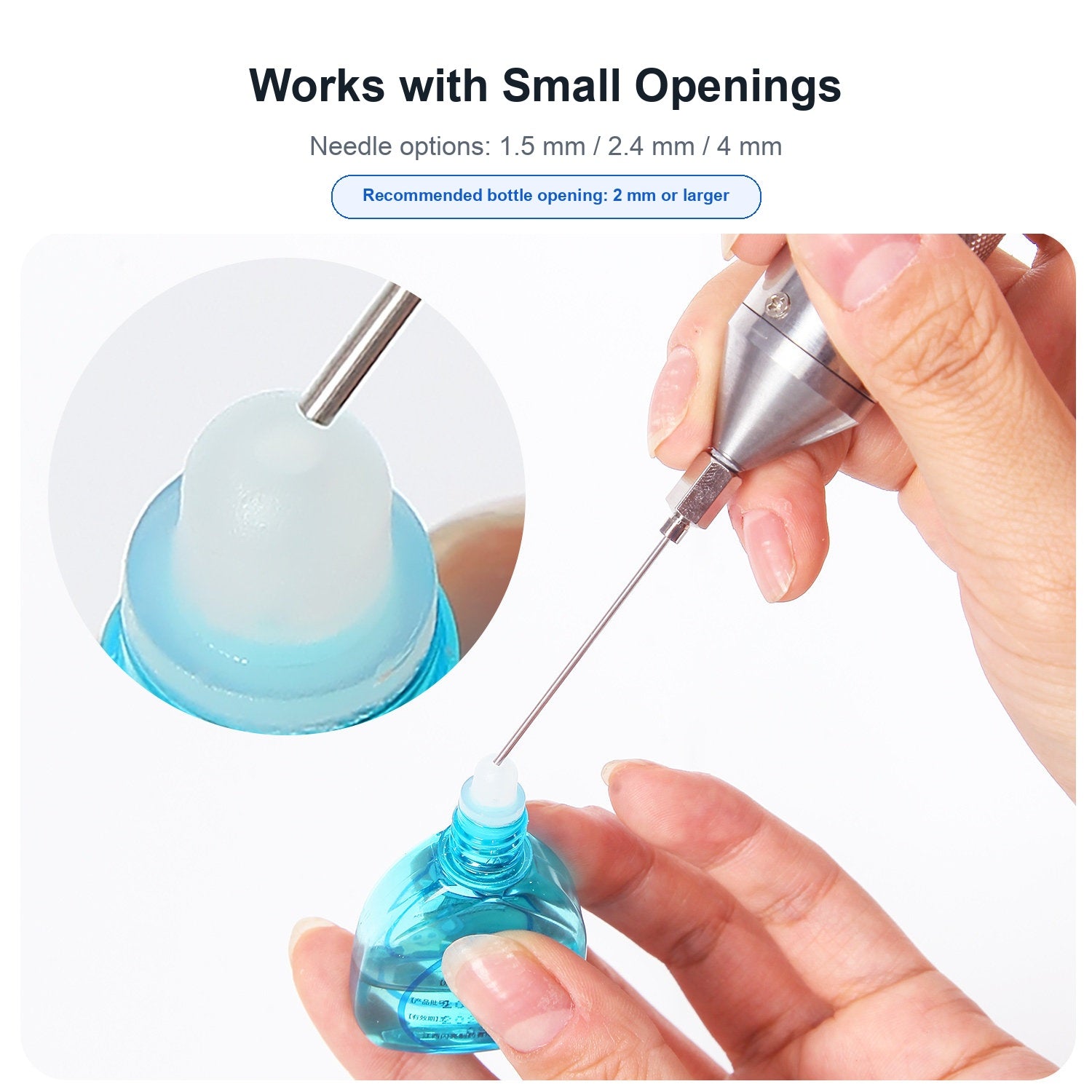

• Designed for small bottles and narrow openings
• Handheld filling pen for flexible operation
• Digital screen for filling volume setup
• Automatic quantitative filling for repeatable output
• Compact stainless-steel body with portable handle
• Multiple filling needle sizes available: 1.5 mm, 2.4 mm, and 4 mm
• Suitable for small-batch production, sampling, and product testing

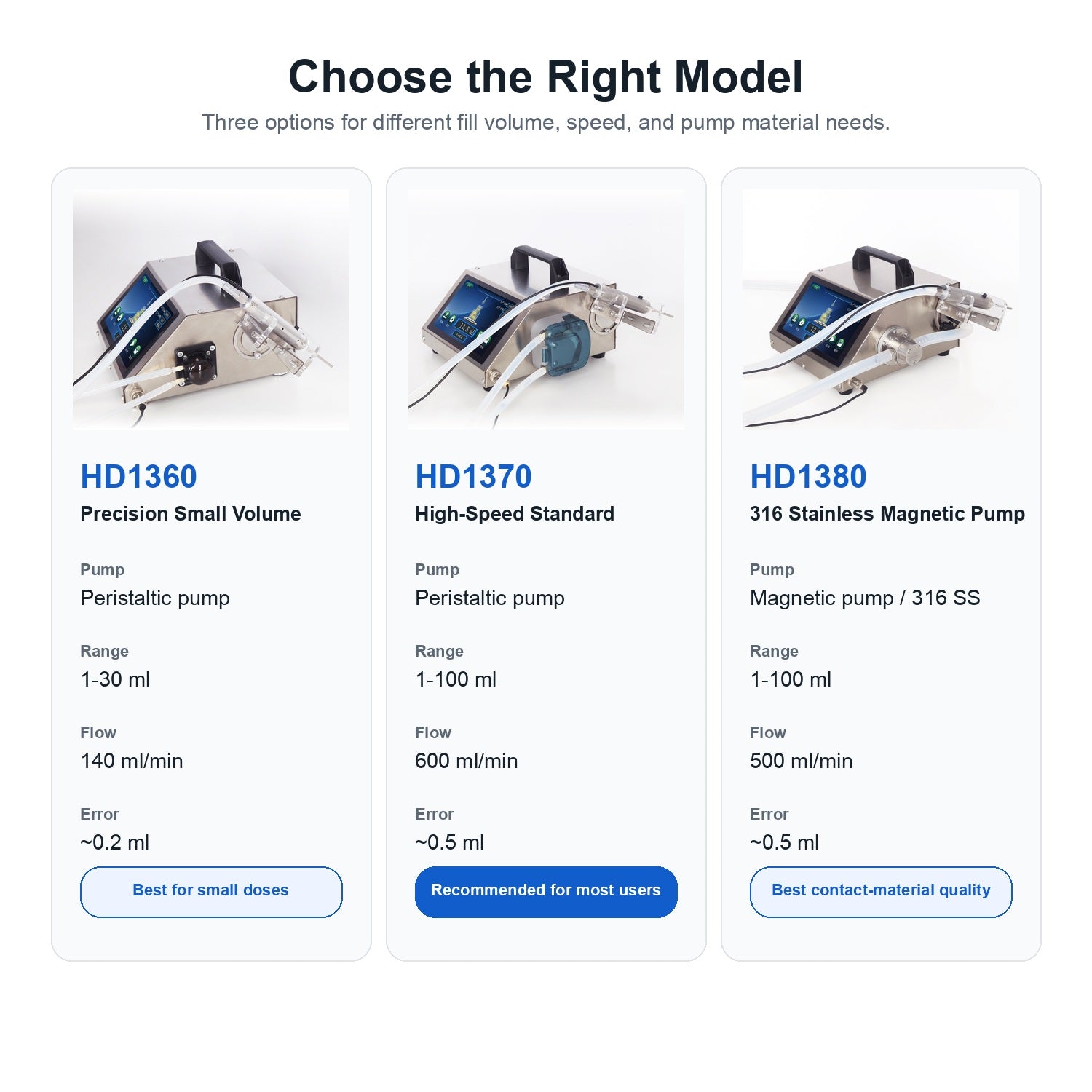

Model Options

Which Model Should You Choose?

• HD1360: Best for small-volume filling from 1-30 ml when higher precision is more important than speed.

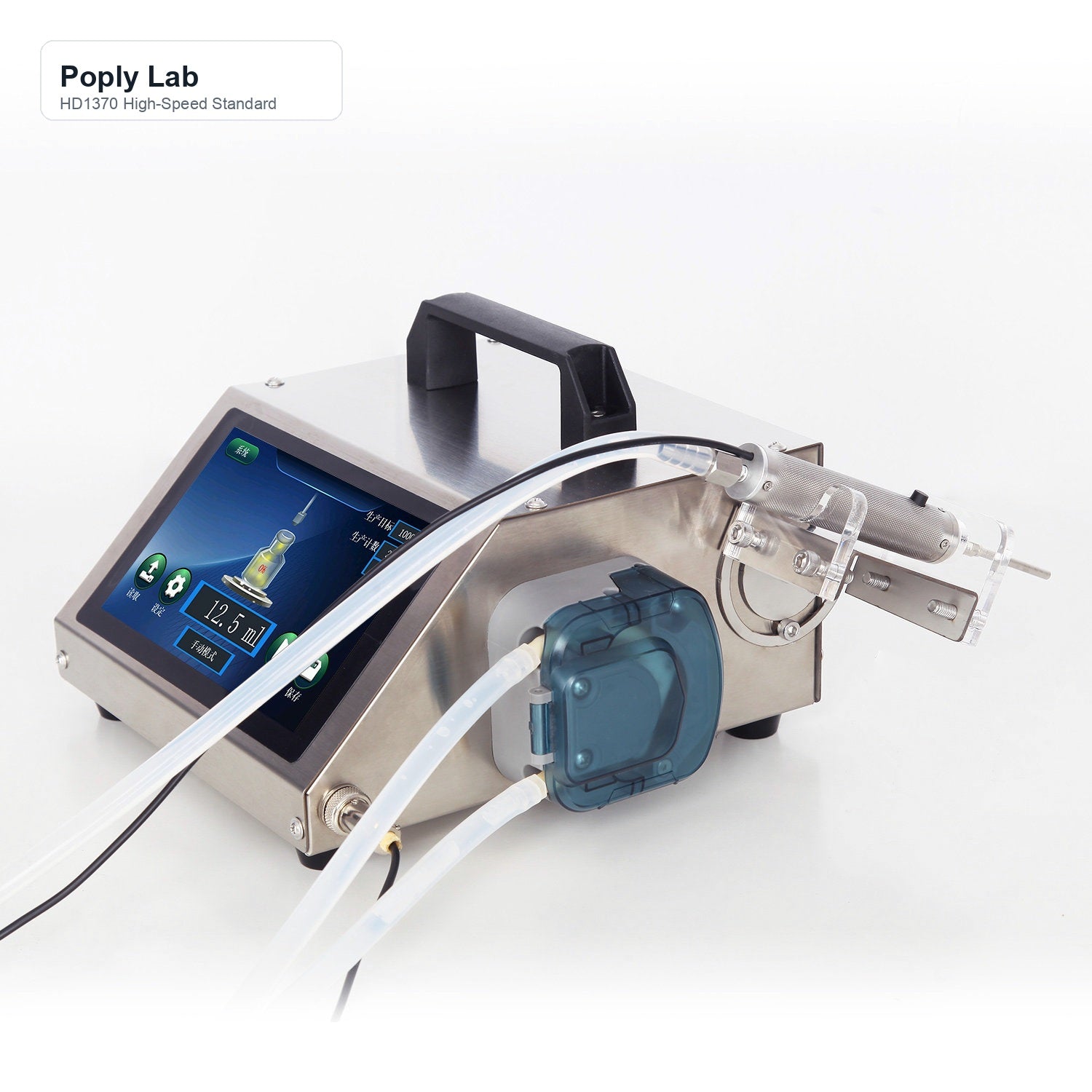

• HD1370: Recommended for most users. It offers the fastest flow rate and works well for general small-bottle filling from 1-100 ml.
• HD1380: Choose this model if you prefer a magnetic pump with a 316 stainless steel pump body for better durability and liquid-contact material quality.

Specifications

• Voltage: AC 110-220V, 50Hz
• Recommended bottle opening: 2 mm or larger
• Inlet tube length: 1.5 m
• Outlet tube length: 1 m

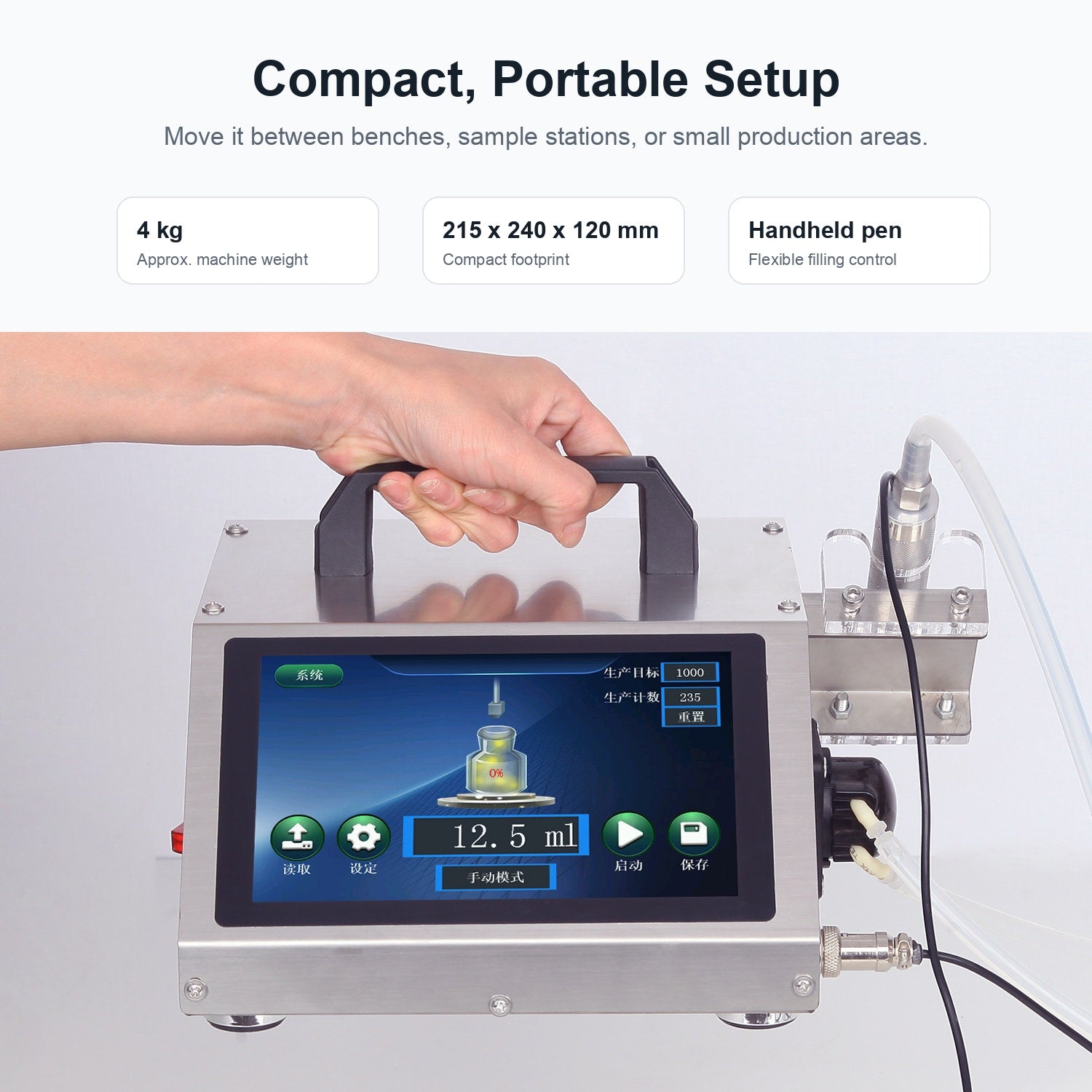

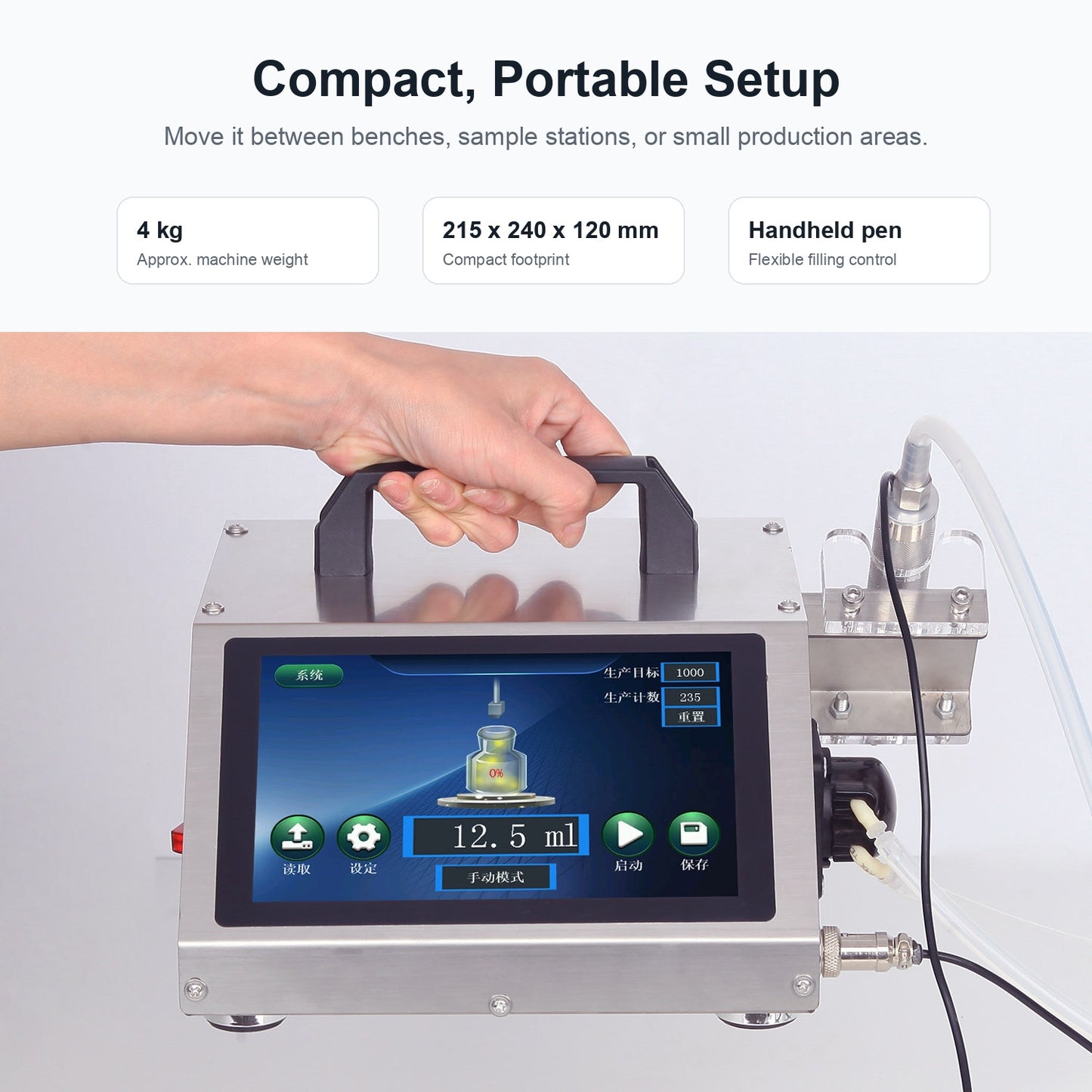

• Machine size: 215 x 240 x 120 mm
• Machine weight: Approx. 4 kg
• Needle options: 1.5 mm, 2.4 mm, 4 mm

Not Recommended For

• Honey, jam, paste, sauce, or thick liquids
• Liquids with particles, pulp, or sediment
• Corrosive, highly volatile, or flammable liquids unless confirmed before purchase
• Large-volume bottle filling

Before You Order

If you are not sure whether this machine works with your liquid or bottle, email us your bottle opening size, target fill volume, liquid type, and a product photo. We will help you check compatibility before ordering.

Power plug options are available for US, EU, UK, AU, and other regional standards. Contact us before ordering if you need a specific plug type.
