Anti-Foam Lifting Liquid Filling Machine for Cleaning Liquids & Disinfectants

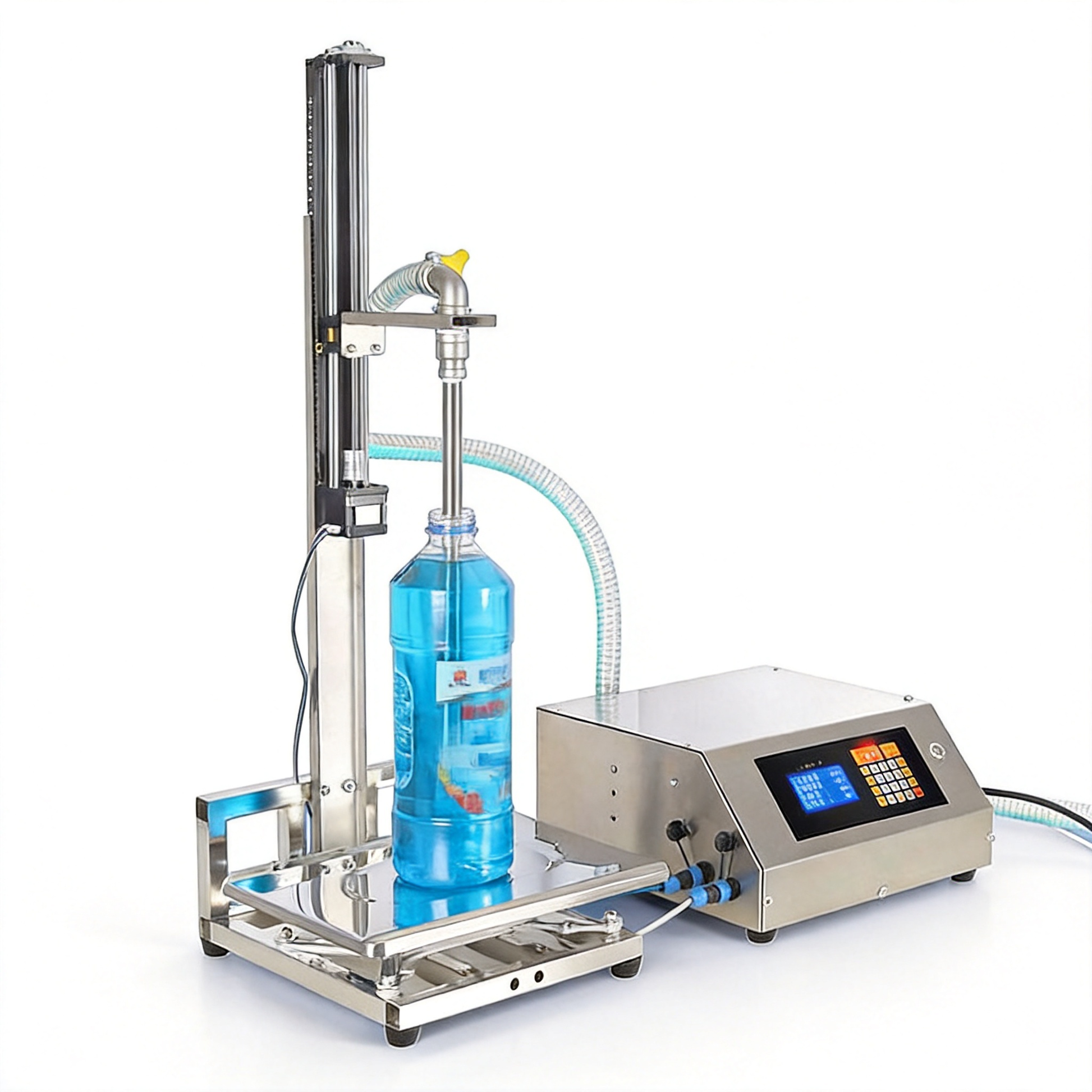

Anti-Foam Lifting Liquid Filling Machine

The Anti-Foam Lifting Liquid Filling Machine is designed for small-batch filling of liquids that tend to bubble, splash, or foam during normal filling.

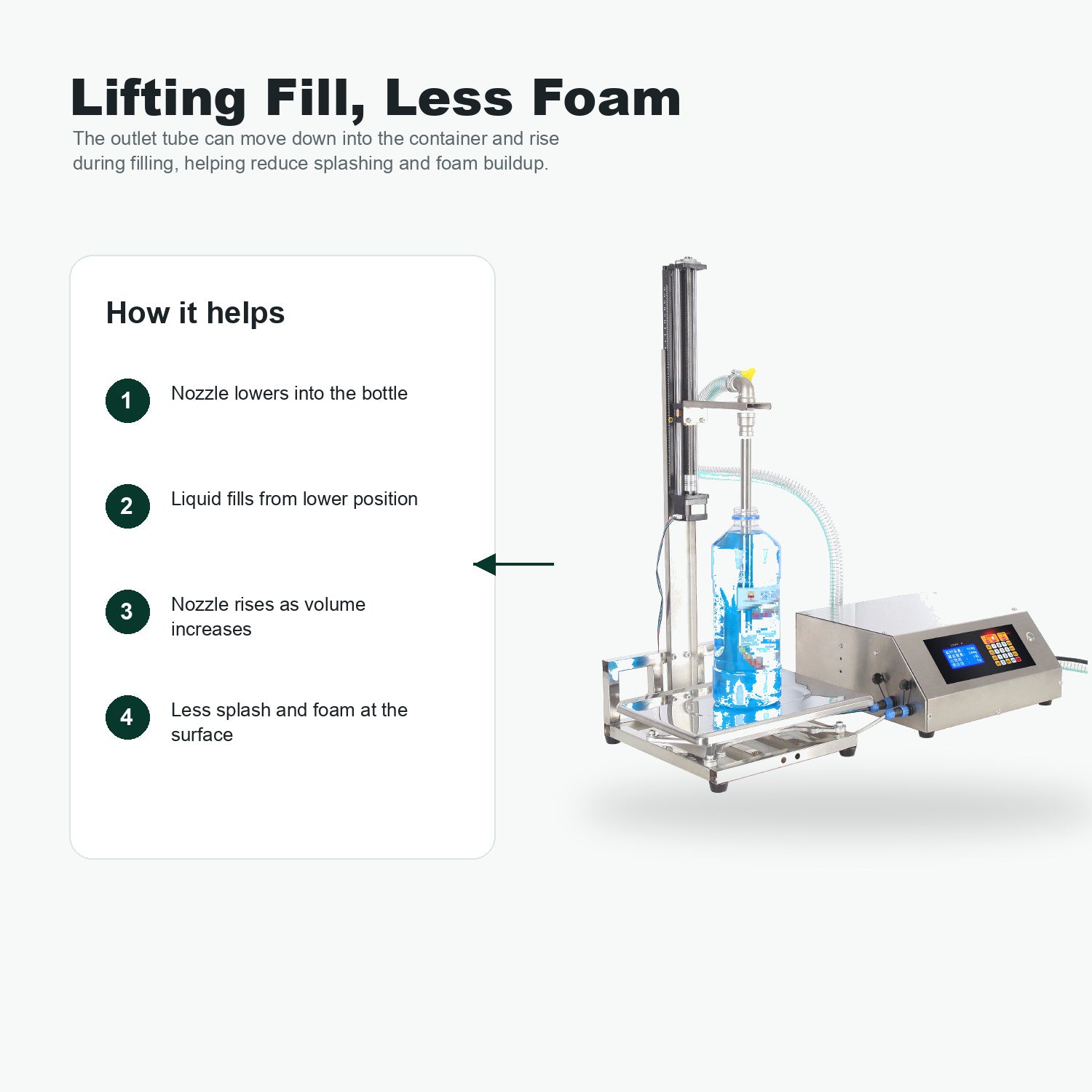

Unlike fixed-nozzle filling machines, this model uses a lifting filling structure. The outlet tube can move down into the container and rise during filling, helping reduce splashing and foam buildup. It is a practical tabletop solution for cleaning products, disinfectants, detergents, oils, agricultural liquids, and other low-to-medium viscosity liquids.

Key Features

• Lifting filling structure helps reduce foam, splashing, and overflow
• Suitable for cleaning liquids, disinfectants, detergents, degreasers, oils, and similar products
• Digital weighing-based filling control
• Adjustable filling height from 0 to 45 cm
• Multiple flow-rate options available
• Compact tabletop setup for small-batch production
• Designed for single-head filling workflows

Best For

• Toilet cleaner
• Detergent
• Disinfectant
• Degreaser
• Cleaning liquids
• Agricultural liquid fertilizer
• Low-viscosity oils
• Beverage samples

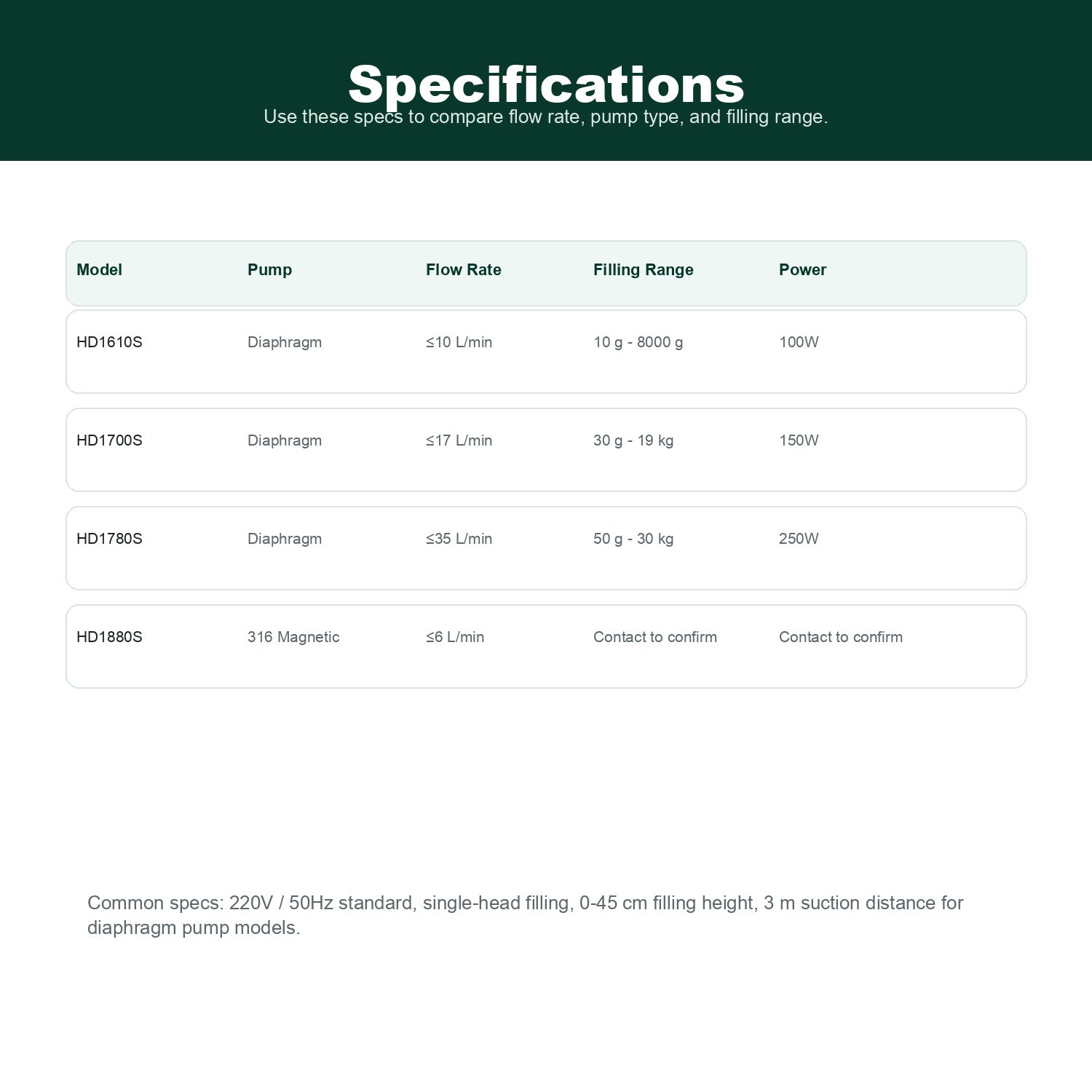

Model Options

HD1610S - Diaphragm Pump - Up to 10 L/min

Recommended for smaller batches and moderate flow needs.

• Pump type: Diaphragm pump
• Rated power: 100W
• Voltage: 220V / 50Hz
• Flow rate: Up to 10 L/min, single head
• Filling range: 10 g - 8000 g, single head
• Filling height: 0 - 45 cm
• Suction distance: 3 m

HD1700S - Diaphragm Pump - Up to 17 L/min

Recommended for regular small-batch filling and medium container sizes.

• Pump type: Diaphragm pump
• Rated power: 150W
• Voltage: 220V / 50Hz
• Flow rate: Up to 17 L/min, single head
• Filling range: 30 g - 19 kg, single head
• Filling height: 0 - 45 cm
• Suction distance: 3 m

HD1780S - Diaphragm Pump - Up to 35 L/min

Recommended for higher-flow filling and larger containers.

• Pump type: Diaphragm pump
• Rated power: 250W
• Voltage: 220V / 50Hz
• Flow rate: Up to 35 L/min, single head
• Filling range: 50 g - 30 kg, single head
• Filling height: 0 - 45 cm
• Suction distance: 3 m

HD1880S - 316 Stainless Steel Magnetic Pump - Up to 6 L/min

Recommended when a stainless steel magnetic pump path is preferred for selected liquids.

• Pump type: 316 stainless steel magnetic pump
• Flow rate: Up to 6 L/min, single head
• Other specifications: Please contact us to confirm before ordering

Voltage & Plug Options

The standard version is 220V / 50Hz. Plug options may be available for different countries. If you need 110V or a specific plug type, please contact us before ordering so we can confirm availability.

Shipping & DDP

We can help arrange international shipping. DDP shipping may be available for selected destinations, which means duties and taxes can be prepaid to help reduce unexpected import fees upon delivery.

Processing time and shipping time may vary depending on model availability, destination country, and shipping method. Air shipping and sea shipping options may be available.

After-Sales Support

We provide basic setup guidance and pre-order model confirmation. If you are not sure which model fits your workflow, contact us before placing your order.

Before Ordering

For faster support, please include:

• Your liquid type
• Your target fill volume or fill weight
• Your bottle or container size
• Your destination country
• Your voltage and plug requirement
• Photos or videos of your current filling workflow, if available

Please check your liquid type, target fill weight, container height, bottle opening size, voltage requirement, and destination country before placing an order. If you are not sure which model fits your liquid or container, contact us before ordering.
